Lightbug.Utilities.ColliderComponent2D Class Reference

An implementation of a ColliderComponent for 2D colliders. More...

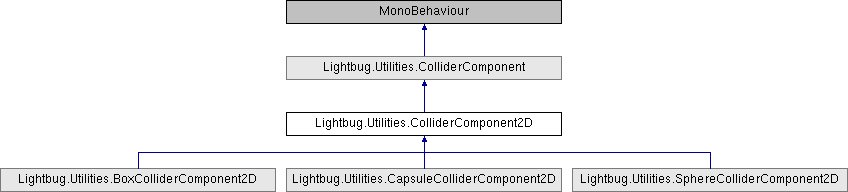

Inheritance diagram for Lightbug.Utilities.ColliderComponent2D:

Public Member Functions
sealed override int	OverlapBody (Vector3 position, Quaternion rotation)
	Performs an overlap check using the body shape. The filter used in this case corresponds to the internal one from the PhysicsBody2D/3D class. If a custom filter is required, 2D/3D implementations must be used instead. More...
override bool	ComputePenetration (ref Vector3 position, ref Quaternion rotation, PenetrationDelegate Action)
	Calcules the amount of penetration between this body and nearby neighbors. Alternatively, an action (delegate) can be passed in, so the resulting position/rotation can be modified if needed. More...
override Vector3	ComputePenetrationVector (ref Vector3 position, ref Quaternion rotation, PenetrationDelegate Action)
	Calcules the amount of penetration between this body and nearby neighbors. Alternatively, an action (delegate) can be passed in, so the resulting position/rotation can be modified if needed. More...
Public Member Functions inherited from Lightbug.Utilities.ColliderComponent
delegate void	PenetrationDelegate (ref Vector3 bodyPosition, ref Quaternion bodyRotation, Transform otherColliderTransform, Vector3 penetrationDirection, float penetrationDistance)
abstract bool	ComputePenetration (ref Vector3 position, ref Quaternion rotation, PenetrationDelegate Action)
	Calcules the amount of penetration between this body and nearby neighbors. Alternatively, an action (delegate) can be passed in, so the resulting position/rotation can be modified if needed. More...
abstract Vector3	ComputePenetrationVector (ref Vector3 position, ref Quaternion rotation, PenetrationDelegate Action)
	Calcules the amount of penetration between this body and nearby neighbors. Alternatively, an action (delegate) can be passed in, so the resulting position/rotation can be modified if needed. More...
abstract int	OverlapBody (Vector3 position, Quaternion rotation)
	Performs an overlap check using the body shape. The filter used in this case corresponds to the internal one from the PhysicsBody2D/3D class. If a custom filter is required, 2D/3D implementations must be used instead. More...

Protected Member Functions
abstract int	InternalOverlapBody (Vector3 position, Quaternion rotation, Collider2D[] unfilteredResults, List< Collider2D > filteredResults, OverlapFilterDelegate2D filter)
bool	InternalHitFilter (RaycastHit2D raycastHit)
bool	InternalOverlapFilter (Collider2D collider)
int	FilterValidOverlaps (int hits, Collider2D[] overlapsBuffer, List< Collider2D > filteredOverlaps, OverlapFilterDelegate2D Filter)
override void	Awake ()
override void	OnEnable ()
override void	OnDisable ()
abstract void	OnEnable ()
abstract void	OnDisable ()
virtual void	Awake ()

Protected Attributes
new Collider2D	collider = null
ContactFilter2D	ContactFilter

Properties
RaycastHit2D[]	UnfilteredHits = new RaycastHit2D[20] [get, protected set]
List< RaycastHit2D >	FilteredHits = new List<RaycastHit2D>(10) [get, protected set]
Collider2D[]	UnfilteredOverlaps = new Collider2D[20] [get, protected set]
List< Collider2D >	FilteredOverlaps = new List<Collider2D>(10) [get, protected set]
PhysicsMaterial2D	Material [get, set]
Properties inherited from Lightbug.Utilities.ColliderComponent
abstract Vector3	Size [get, set]
	The size of the collider.
abstract Vector3	Offset [get, set]
	The distance between the center of the collider and the position of the object.
abstract Vector3	BoundsSize [get]
	The collider bounding volume.
Vector3	Center [get]

Additional Inherited Members
Static Public Member Functions inherited from Lightbug.Utilities.ColliderComponent
static ColliderComponent	CreateInstance (GameObject gameObject, bool includeChildren=true)

Detailed Description

An implementation of a ColliderComponent for 2D colliders.

Member Function Documentation

Awake()

override void Lightbug.Utilities.ColliderComponent2D.Awake ( )

inlineprotectedvirtual

Reimplemented from Lightbug.Utilities.ColliderComponent.

ComputePenetration()

override bool Lightbug.Utilities.ColliderComponent2D.ComputePenetration ( ref Vector3  position, ref Quaternion  rotation, PenetrationDelegate  Action  )

inlinevirtual

Calcules the amount of penetration between this body and nearby neighbors. Alternatively, an action (delegate) can be passed in, so the resulting position/rotation can be modified if needed.

Parameters

position	The position reference.
rotation	The rotation reference.
Action	This delegate will be called after the penetration value is calculated.

Returns

True if there was any valid overlap.

Implements Lightbug.Utilities.ColliderComponent.

ComputePenetrationVector()

override Vector3 Lightbug.Utilities.ColliderComponent2D.ComputePenetrationVector ( ref Vector3  position, ref Quaternion  rotation, PenetrationDelegate  Action  )

inlinevirtual

Calcules the amount of penetration between this body and nearby neighbors. Alternatively, an action (delegate) can be passed in, so the resulting position/rotation can be modified if needed.

Parameters

position	The position reference.
rotation	The rotation reference.
Action	This delegate will be called after the penetration value is calculated.

Returns

The penetration vector.

Implements Lightbug.Utilities.ColliderComponent.

OnDisable()

override void Lightbug.Utilities.ColliderComponent2D.OnDisable ( )

inlineprotectedvirtual

Implements Lightbug.Utilities.ColliderComponent.

OnEnable()

override void Lightbug.Utilities.ColliderComponent2D.OnEnable ( )

inlineprotectedvirtual

Implements Lightbug.Utilities.ColliderComponent.

OverlapBody()

sealed override int Lightbug.Utilities.ColliderComponent2D.OverlapBody ( Vector3  position, Quaternion  rotation  )

inlinevirtual

Performs an overlap check using the body shape. The filter used in this case corresponds to the internal one from the PhysicsBody2D/3D class. If a custom filter is required, 2D/3D implementations must be used instead.

Implements Lightbug.Utilities.ColliderComponent.

---

The documentation for this class was generated from the following file:

• C:/Unity/Projects/CCP v1/Assets/Character Controller Pro/Main/Utilities/Scripts/ColliderComponent2D.cs
